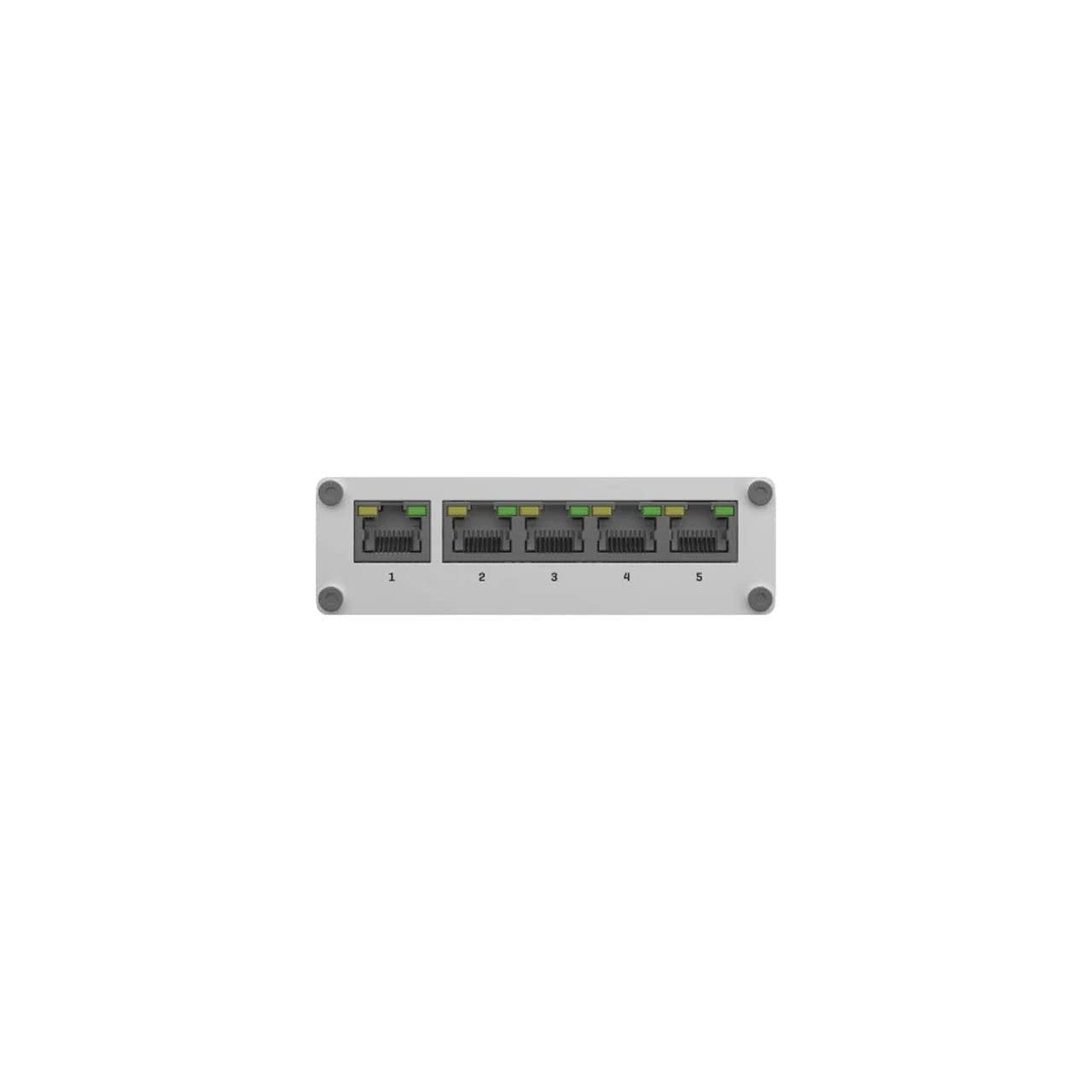

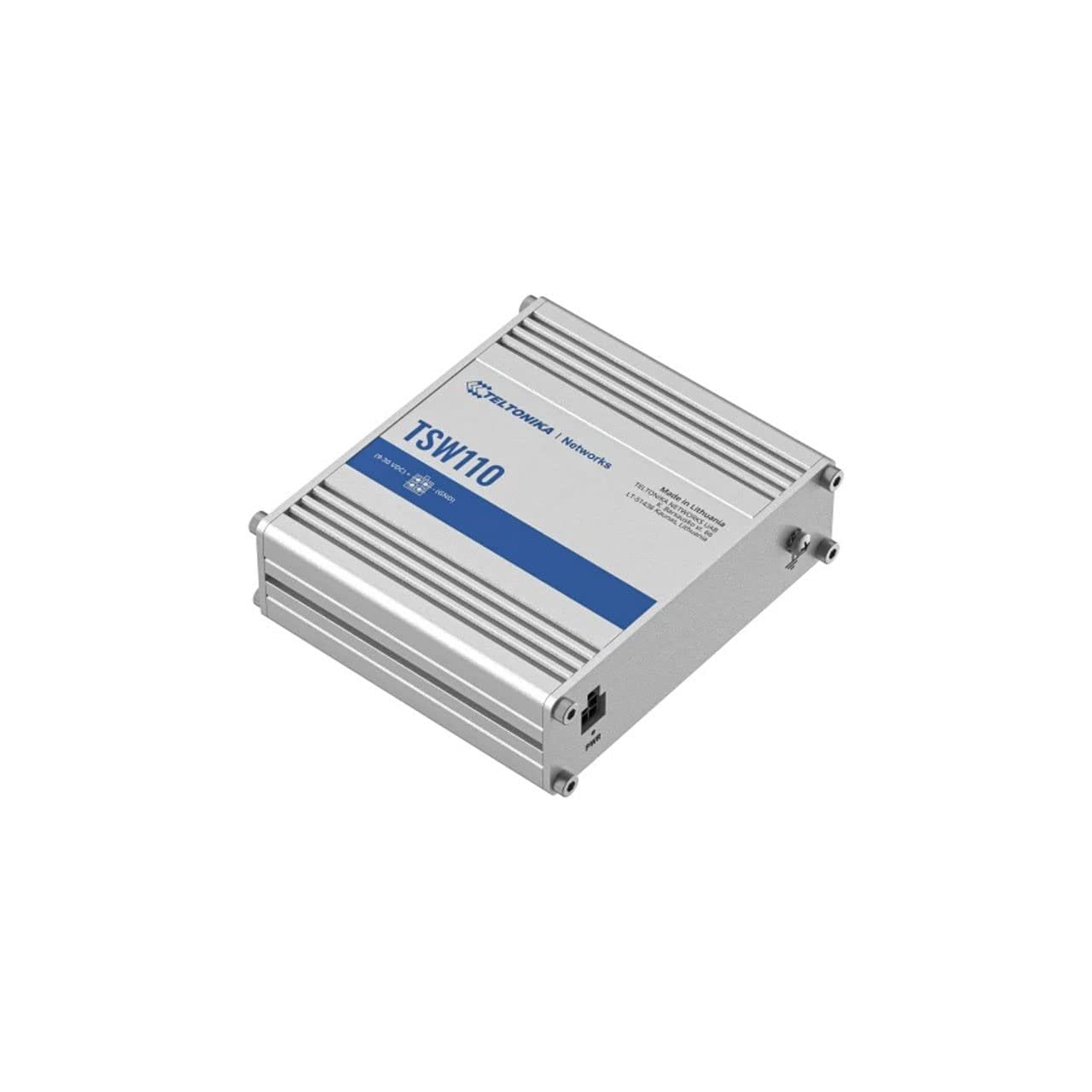

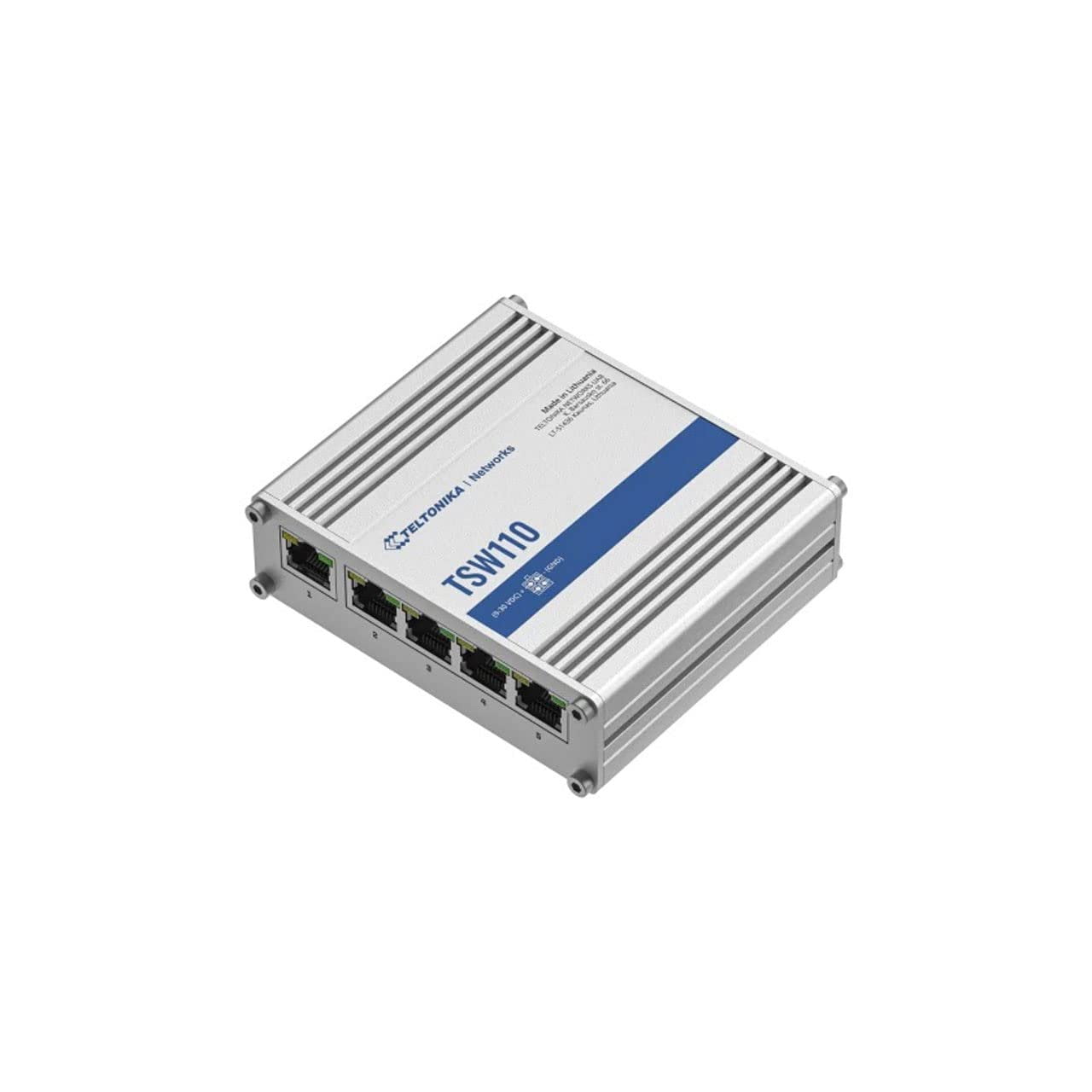

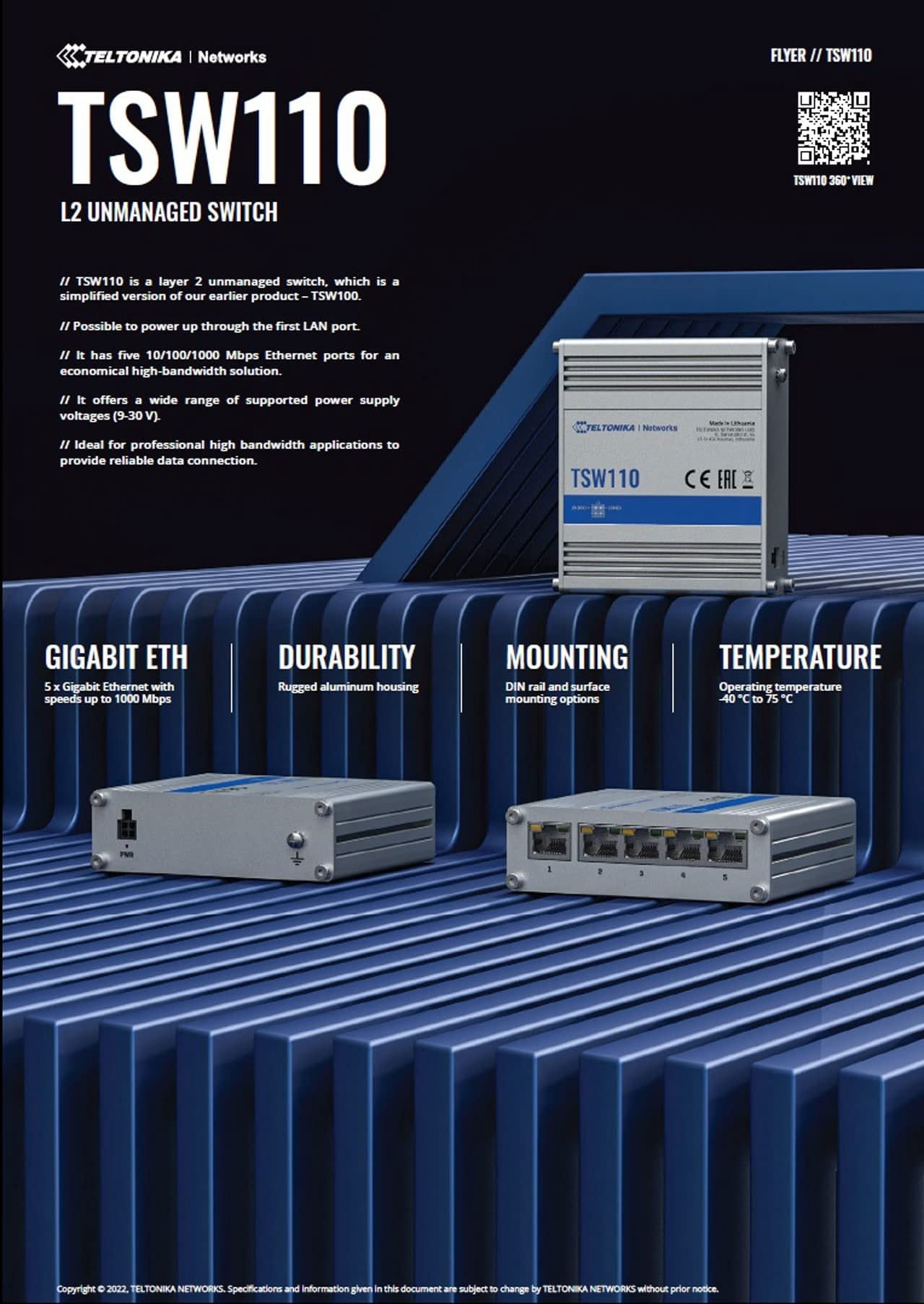

Teltonika TSW110000010 Model TSW110 Industrial L2 Unmanaged Switch, 10/100/1000 Mbps Ethernet Ports, Aluminum Housing, 10 Gbps Bandwidth
4.1 (53 items)
Limited Time SaleUS$37.80 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 230454898 | Release Date | 2026/06/18 | List Price | US$25.20 | Model Number | 230454898 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
<p>Teltonika TSW110 000010 Industrial L2 Unmanaged Switch, 10/100/1000 Mbps Ethernet Ports, Aluminum Housing, 10 Gbps Bandwidth<br><br> Key Features:<br> - Possible to power up through the first LAN port<br> - Five 5 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution<br> - Ideal for professional high bandwidth applications to provide reliable data connection<br> - Status Leds; 1 x Power, 10 x Ethernet<br> - Plug-N-Play, No additional configuration needed<br> - Package includes: 1 TSW110, 9W US PSU, and Quick Start Guide<br><br> Specifications:<br> - Ethernet: 5 x LAN ports 10/100/1000 Mbps<br> - Power Supply: 9 - 30 V, 4 pin DC connector<br> - Power Consumption: idle: < 0.4W, max: < 1.8W<br> - PoE input passive: Passive PoE over 4,5 power and 7,8 ground pins. Possibility to power up through first LAN port, not compatible with IEEE802.3af and 802.3at standard<br> - Connector: 1 x 4 pin DC, 5 x Ethernet<br> - Status LEDs: 1 x Power, 10 x Ethernet<br> - Ingress Protection Rating: IP30<br> - Operating Temperature: -40 C to 75 C <br> - Housing: Aluminum housing with wall or DIN rail mounting option and grounding capability<br> - Installation: Desktop, wall or DIN Rail mountable additional kit needed<br> - Weight: 0.5 Pounds<br> - Dimensions WxHxD: 3.93" x 1.18" x 3.4"</p>
Teltonika TSW110 000010 Industrial L2 Unmanaged Switch, 10/100/1000 Mbps Ethernet Ports, Aluminum Housing, 10 Gbps Bandwidth- Possible to power up through the first LAN port
- Five 5 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution
- Ideal for professional high bandwidth applications to provide reliable data connection
- Status Leds; 1 x Power, 10 x Ethernet
- Plug-N-Play, No additional configuration needed
- Package includes: 1 TSW110, 9W US PSU, and Quick Start Guide

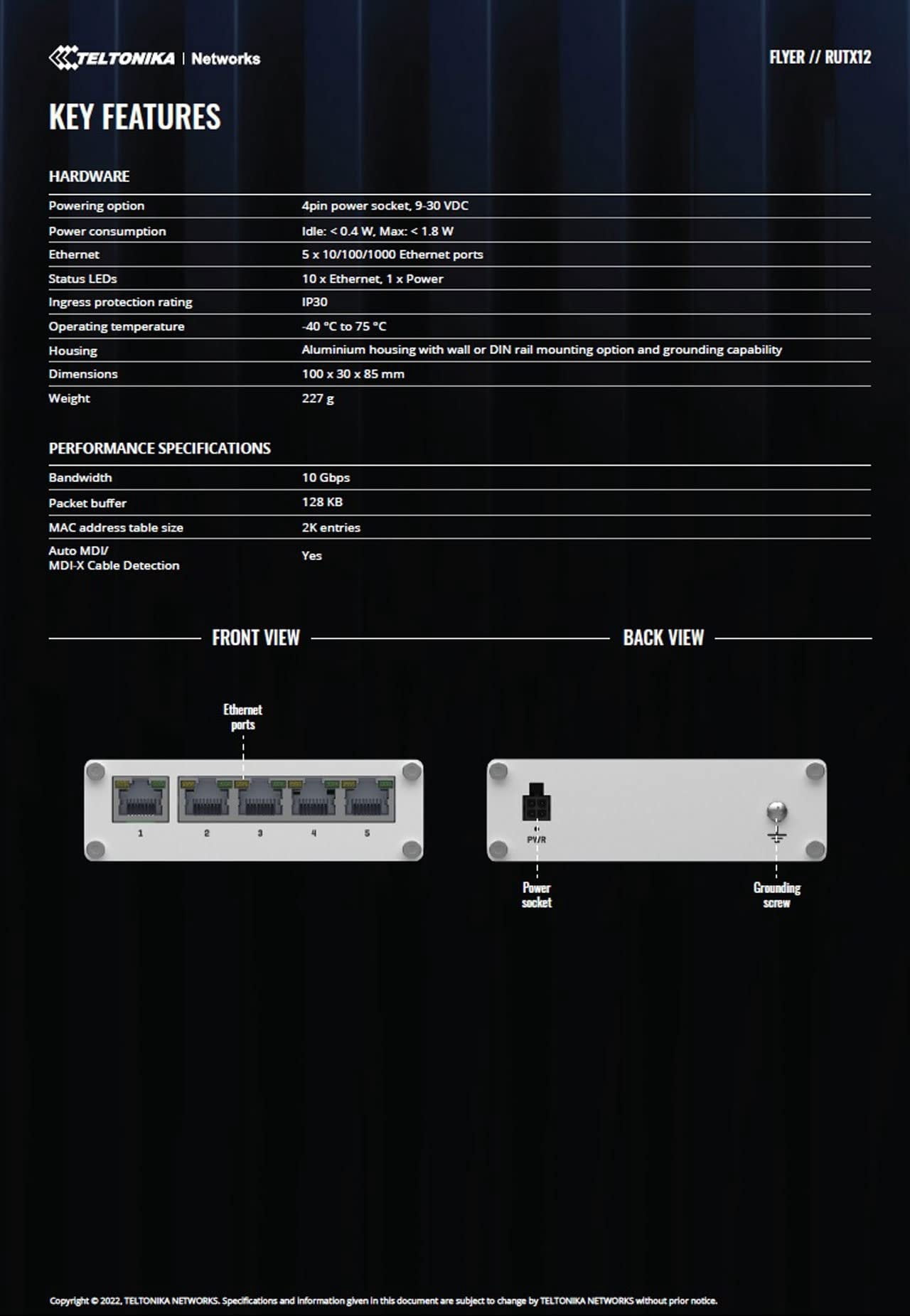

- Ethernet: 5 x LAN ports 10/100/1000 Mbps
- Power Supply: 9 - 30 V, 4 pin DC connector
- Power Consumption: idle: < 0.4W, max: < 1.8W
- PoE input passive: Passive PoE over 4,5 power and 7,8 ground pins. Possibility to power up through first LAN port, not compatible with IEEE802.3af and 802.3at standard
- Connector: 1 x 4 pin DC, 5 x Ethernet
- Status LEDs: 1 x Power, 10 x Ethernet
- Ingress Protection Rating: IP30
- Operating Temperature: -40 C to 75 C
- Housing: Aluminum housing with wall or DIN rail mounting option and grounding capability
- Installation: Desktop, wall or DIN Rail mountable additional kit needed
- Weight: 0.5 Pounds
- Dimensions WxHxD: 3.93" x 1.18" x 3.4"
| Brand | Teltonika |
|---|---|
| Network switch type | Unmanaged Switch |
| Number of ports | 10 |
| Transfer rate | 10 Gbps |
| Number of layers | 2 |
| Form factor | Desktop |
| Model name | TSW110 |
| LAN ports | 10 |
| Inputs/Outputs | 10/100/1000 Mbps Ethernet Ports |
| Accessories | TSW110, 9W US PSU, Quick Start Guide |
| Dimensions | 6.93 x 5.75 x 2.83 in |
| Weight | 0.5 lbs |
| Has written warranty | No |
| Has nrtl listing certification | N |
