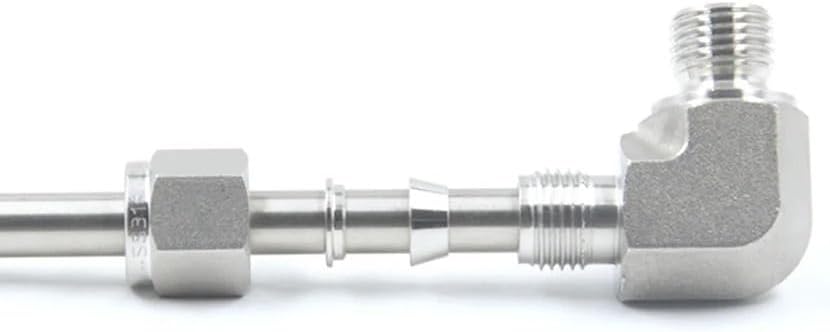

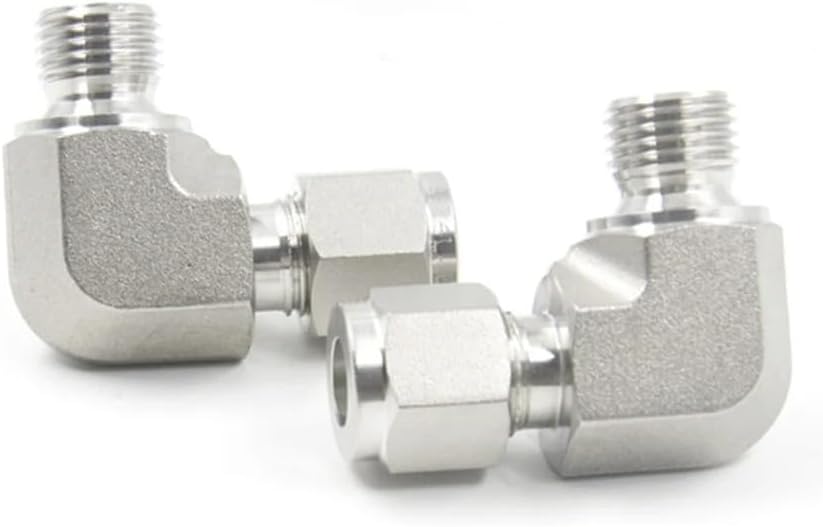

Stainless Steel Degree Elbow, 1PC 316 Male BSPP G Thread to LOK 1/8" 1/4" 3/8" 1/2" BSP to 3 6 8 10 mm Tube Fitting(1/8 INCH*3/8 INCH)

1PC 316 Stainless Steel Male Elbow BSPP G Thread to LOK 1/8" 1/4" 3/8" 1/2" BSP to 3 6 8 10 mm Tube FittingApplicationFor inert gas, reactive, flammable, oxidizing and corrosive gases and gas mixtures, Purity max. 6.0.Tube Fittings are appropriate for Gas Systems, but the implementation of certain standards mentioned below should be adhered to just as in other systems.1. Tubing hardness must be less than that of the ferrules.2. Tubing should be away of finishing imperfections, defects and round in shape.3. Tubing ends must be cut squarely and perpendicular to the center-line of the tubing. After the tubing is cut it must be deburred on both the inside and outside with a fully sharpened deburring tool.FeaturesProvide a reliable, leak proof seal under severe conditions such as temperature cycling, vibration and pulsation.Contribute to productivity improvement because of machined surfaces on the inner finishing.Assembled easily without the requirement of any special tools.Excellent finish level to allow smooth flow transition.Material: 316 Stainless SteelStraight fittings are machined from bar stock and shaped fittings from forgings.

• Assembled easily without the requirement of any special tools.
• Contribute to productivity improvement because of machined surfaces on the inner finishing.
• Excellent finish level to allow smooth flow transition.
• suitable for most pipe connections.
