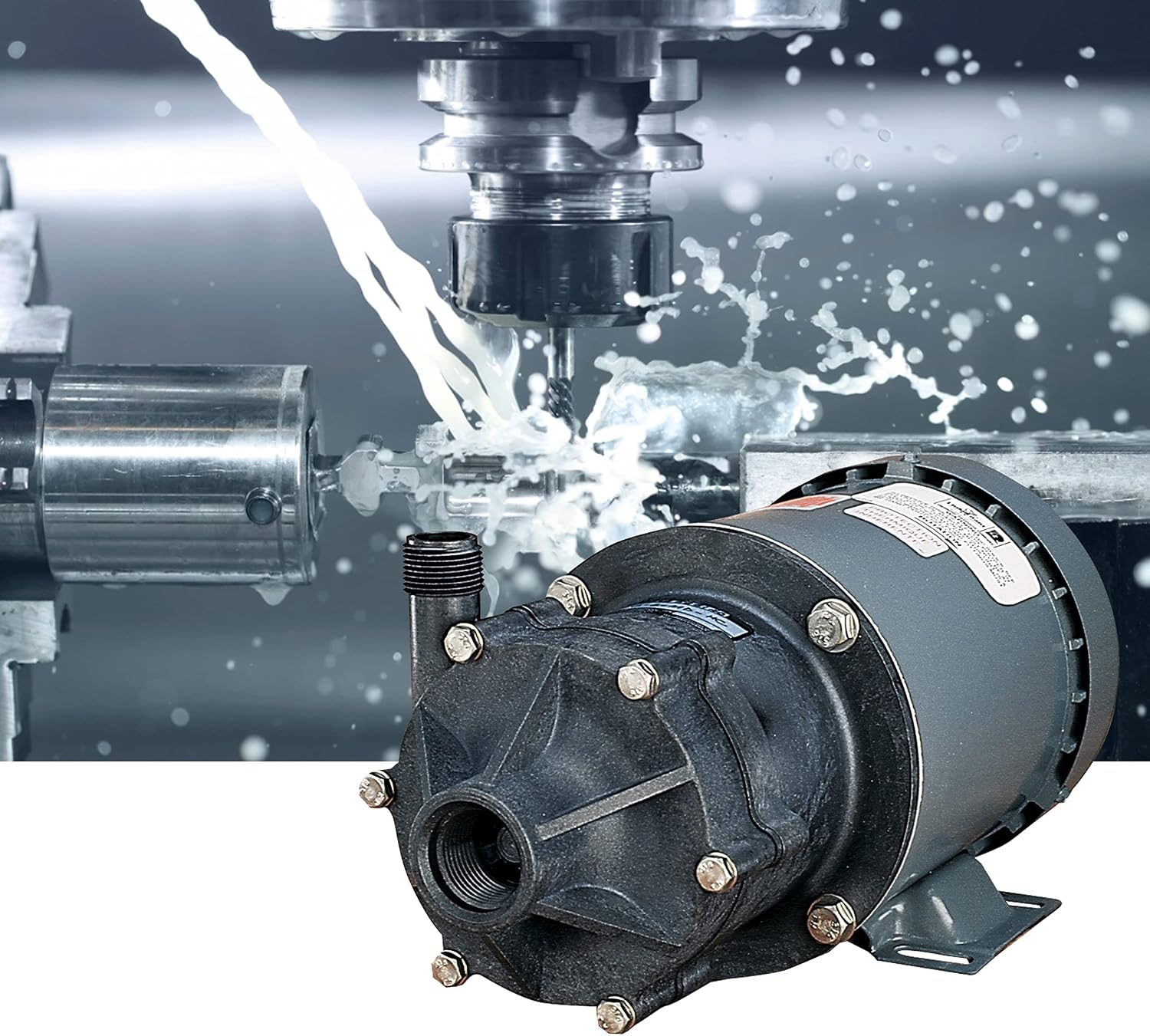

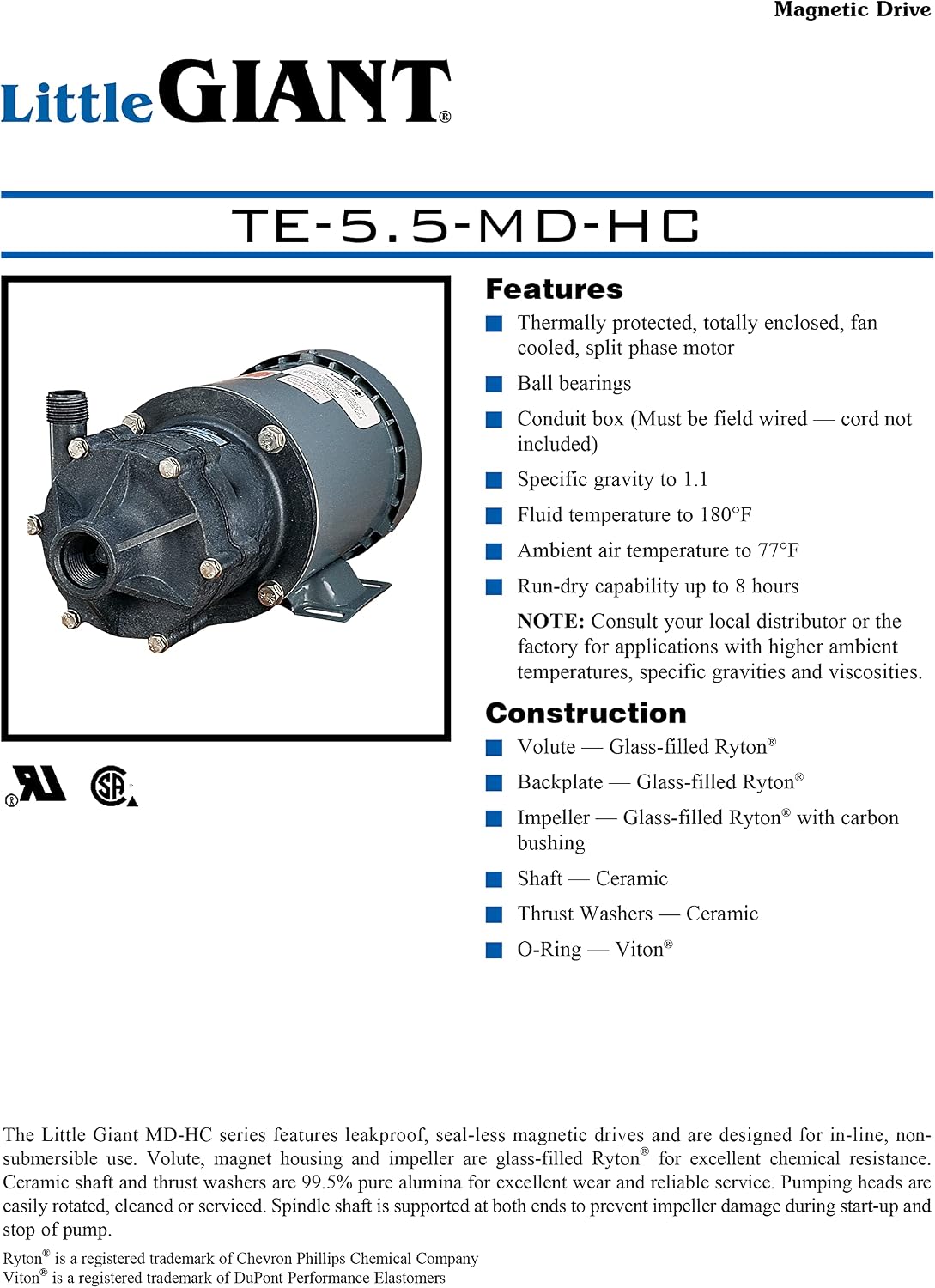

Little Giant TE-5.5-MD-HC 115/230 Volt, 1/3 HP, 1920 GPH Non-Submersible Highly Corrosive Chemical Transfer Magnetic Drive Pump, No Cord, Black 585604

The Little Giant 115/230 Volt, 1/3 HP TE-5.5-MD-HC non-submersible magnetic drive pump is used to circulate highly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions, and other highly corrosive chemicals and solutions. Its motor housing, impeller, and volute are made of polyphenylene sulfide PPS for excellent chemical resistance. This pump utilizes pure carbon bushing to enable the pump to run dry for up to 8 hours at a time. This pump delivers up to 1920 GPH at 5-ft. lift. This pump comes equipped with a conduit box and must be field wired; a cord is not included.

• APPLICATIONS: designed for in-line, non-submersible use to circulate highly corrosive acids, alkalis, solvents, brine, plating and sterile solutions and other highly corrosive chemicals/solutions
• EXCELLENT CHEMICAL RESISTANCE: motor housing, impeller and volute are made of polyphenylene sulfide (PPS); motor shaft and thrust washers are ceramic, FKM O-ring seal
• LIMITATIONS: 1.1 specific gravity; maximum liquid temperature 180°F; this pump does not come with a cord
• MOTOR SPECIFICATIONS: 1/3 HP, 115/230 Volts; 50/60 Hz; 5.0 Amps at 60 Hz at 115 Volts; 2.5 Amps at 60 Hz at 230 Volts; thermally protected, TEFC, capacitor start; conduit box - must be field wired
• PUMP SPECIFICATIONS: 1920 GPH at 5-ft. lift; 1-inch FNPT suction; 3/4-inch MNPT discharge; 40.5-ft. shutoff; 17.5 PSI; fluid temperature to 180 °F; specific gravity to 1.1
